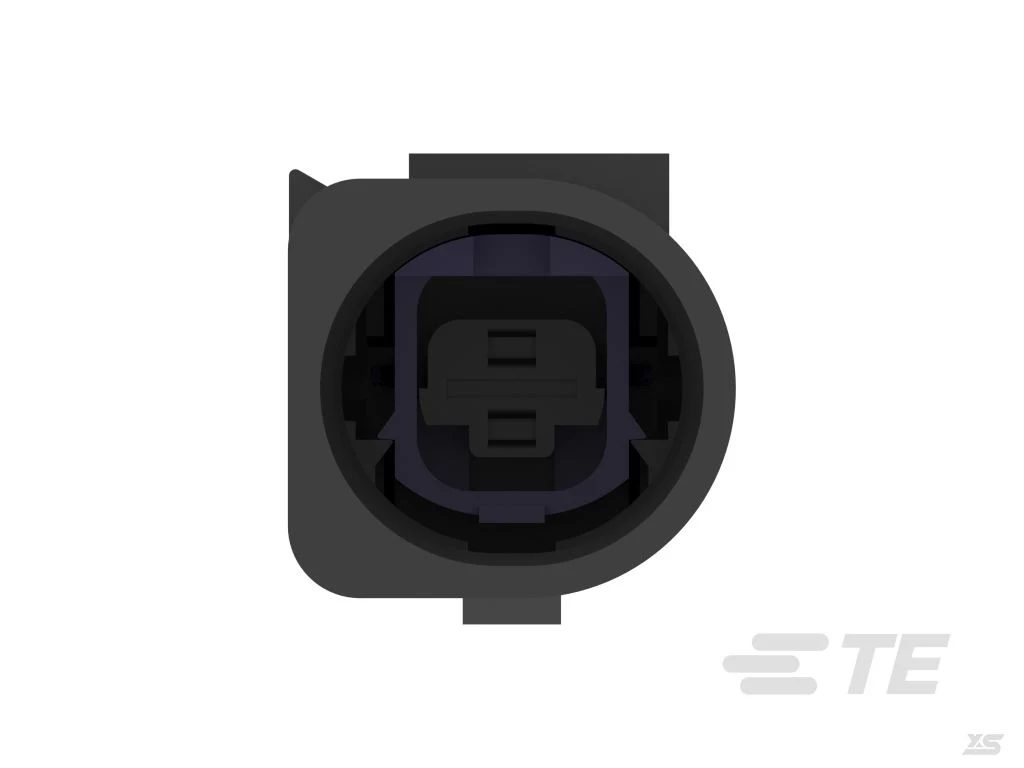

1-966857-1

Type:
Automotive connector housing
Brand:
AMP
Color:
-
Product description:
TAB HOUSING 4,8 1P

Connector Type Tab
Connector System Wire-to-Wire
Waterproof Yes
Hybrid Connector No
Number of Cavities 1
Number of Rows 1
Body Material PBT GF
Wire Exit Angle Other
Primary Product Color Black
Centerline (Pitch) -
Product Height 21.4 mm [.843 in]
Product Length 20.5 mm
Product Width 52 mm [2.047 in]
UL Flammability Rating No
Packing Method Carton
Package Quantity -
Mating Tab Width 4.8 mm [.189 in]
Circuit Application Signal
Waterproof Rating -
Operating Voltage 12 VDC
Nominal Voltage Architecture 12 V
Connector and Contacts Terminate to -
Contact Current Rating (Maximum) -
