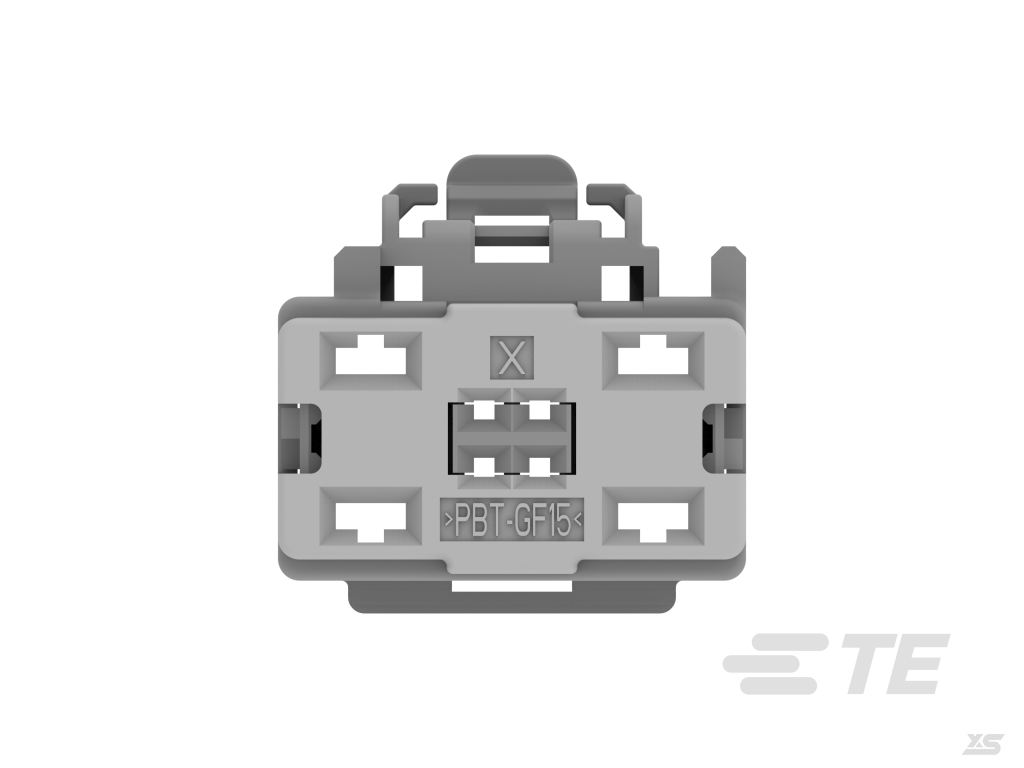

1456471-4

Type:
Automotive Connector Housing
Brand:
TE Connectivity
Color:
2.54 mm[.1 in]
Product Description:
8p Hybrid 0.64/2.8 Unsealed Plug Assy

Connector Type Receptacle
Connector System Wire-to-Board
Waterproof No
Hybrid Connector Yes
Number of Holes 8
Number of Rows 2
Body Material PA GF
Wire Exit Angle 180°
Primary Product Color Gray
Center Line (Pitch) 2.54 mm[.1 in]
Product Height 21 mm[.826 in]
Product Length 21.42 mm
Product Width 27.7 mm[1.09 in]
UL Flammability Rating -
Packing Method Bag
Package Quantity 400
Mating Tab Width .64 mm[.025 in]
Circuit Application Signal
Waterproof Rating -
Operating Voltage -
Nominal Voltage Architecture -
Connector and Contact Terminate to -
Contact Current Rating (Maximum) -
