1928404627

Type:
Connector
Brand:
Bosch
Color:
Grey
Product Description:

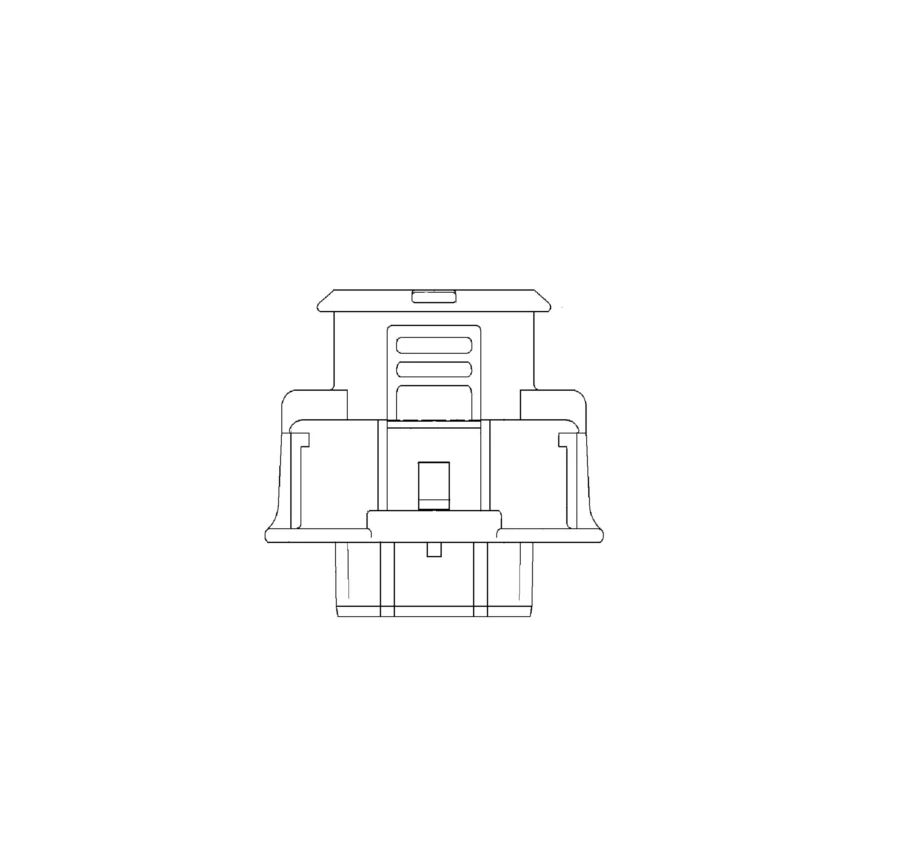

Kompakt 1.a / Connector 4P / Code 2 / Grey

Manufacturer    Bosch
Packing unit    1000pcs
Product Type    Connector Housing
Number of positions    4
Code    2
Blade width    2.8mm
Connection System    Wire-to-Device
Gender    Female
Sealed connection    Yes
Primary Locking (Terminal)    Lance-locking
Colour    grey
Body Material    PA 66 GF 30
Length    36.2mm
Width    22mm
Height    30.4mm
Minimum pitch    5mm
Vibration Resistance    Engine / Transmission
Vibration strength    30G
Temperature range, min.    -40°
Temperature range, max.    150°
Terminal Sealing    Single wire seal
Type of seal (connector)    radial seal
Type of seal (cable)    single wire seal
Type of locking mechanism (connector)    with a plastic clip
Secondary locking    No
Additional features    moulded protective wall
