1928405161

Type:
Connector
Brand:
Bosch
Color:
Black
Product Description:

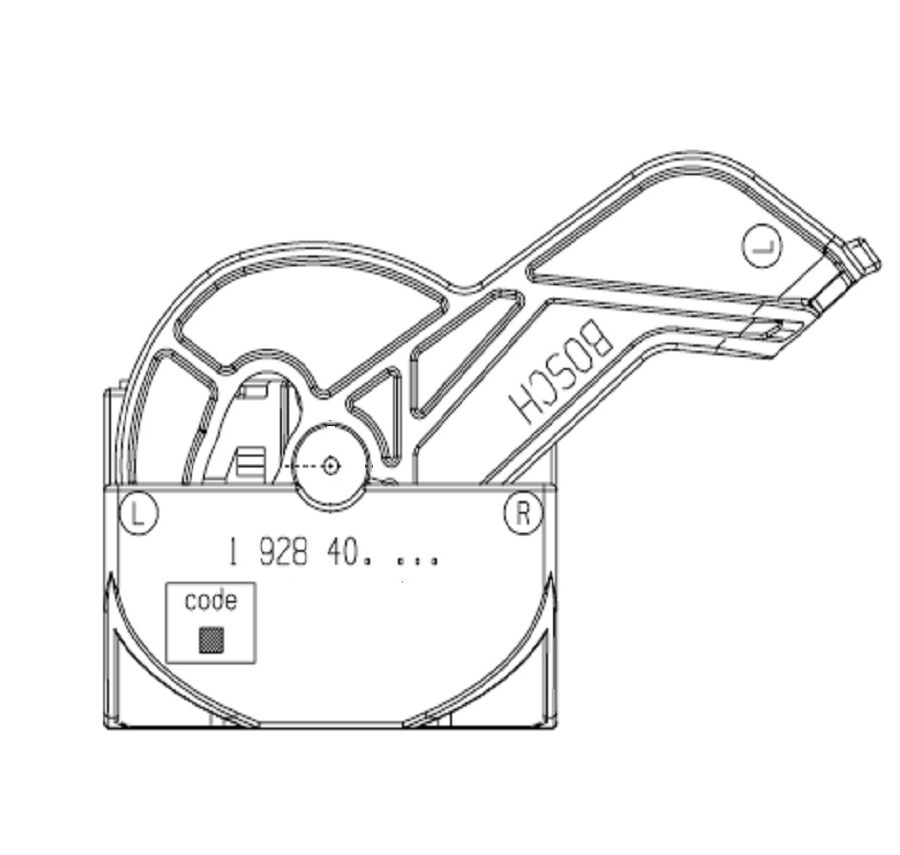

56P-V EMS / Contact Housing 56P-B / Exit left / Code 13

Manufacturer    Bosch
Packing unit    200pcs
Product Type    Contact Housing
Number of positions    56
Code    13
Blade width    0.6mm
1.5mm
Connection System    Wire-to-Device
Gender    Female
Sealed connection    Yes
Primary Locking (Terminal)    Clean body and lance
Colour    black
Body Material    PA 66 GF
Length    40.85mm
Width    49.1mm
Height    46.5mm
Minimum pitch    2.75mm
Vibration Resistance    Engine Compartment
Vibration strength    3G
Temperature range, min.    -40°
Temperature range, max.    105°
Terminal Sealing    Mat seal
Type of seal (connector)    radial seal
Type of seal (cable)    radial seal
Type of locking mechanism (connector)    lever
Secondary locking    Yes
