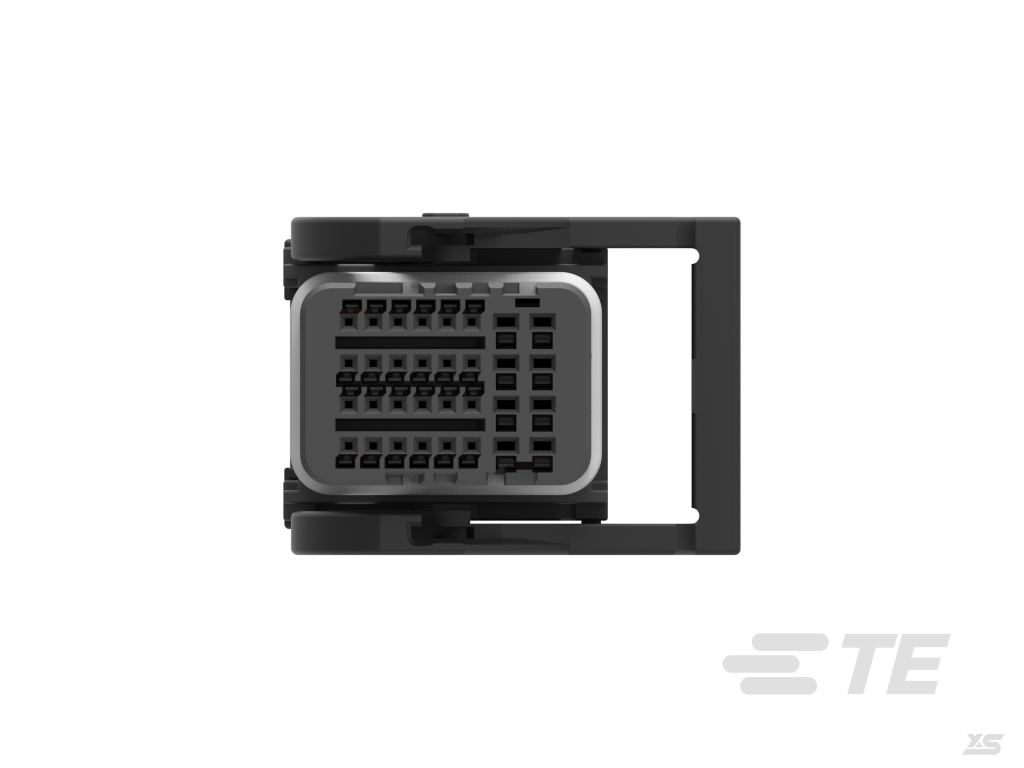

2137299-8

Type:
Automotive Connector Housing
Brand:
TE Connectivity
Color:
2.5 mm[.098 in]
Product Description:
PACKAGE COMPONENT FOR 32P MIXE

Connector Type Female
Connector System Wire-to-Wire
Waterproof Yes
Mixed Connector Yes
Number of Cavities 32
Number of Rows 4
Body Material PA
Wire Exit Angle 180°
Primary Product Color Black
Center Line (Pitch) 2.5 mm[.098 in]
Product Height 34.4 mm[1.35 in]
Product Length 29.6 mm
Product Width 37.35 mm[1.47 in]
UL Flammability Rating No
Packing Method Box
Package Quantity 120
Mating Tab Width .64 mm[.025 in]
Circuit Application Signal
Waterproof Rating -
Operating Voltage -
Nominal Voltage Architecture -
Connector and Contact Terminate to -
Contact Current Rating (Maximum) -
