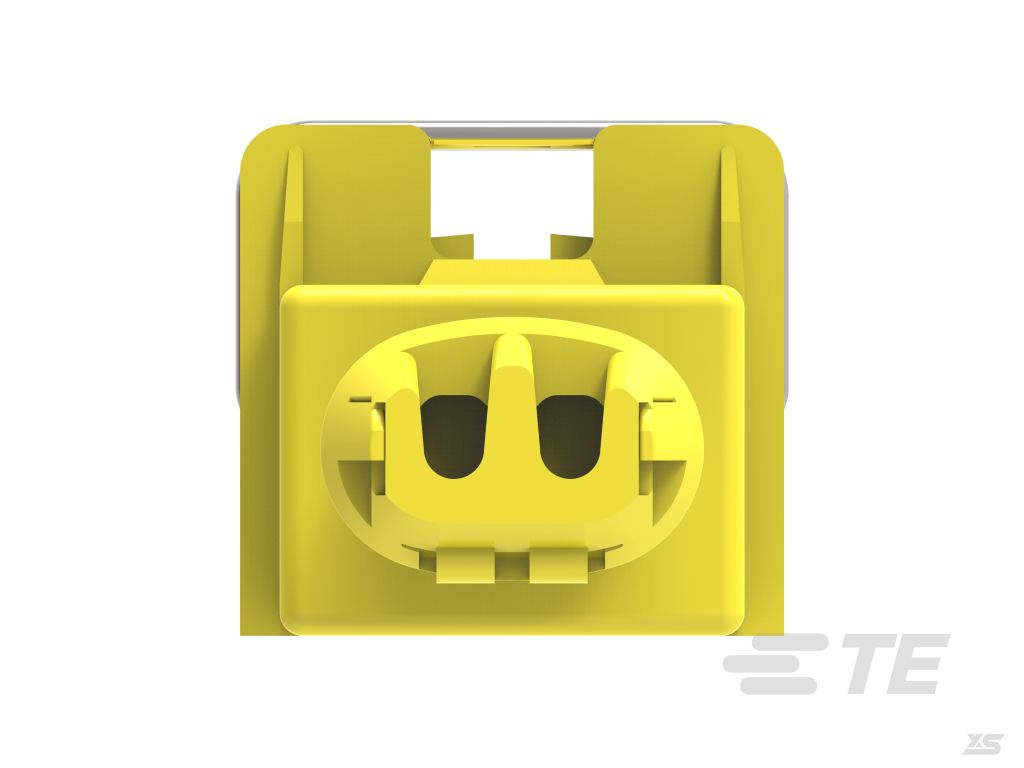

282956-7

Type:
Automotive Connector Housing
Brand:
AMP
Color:
5 mm[.197 in]
Product Description:
SPLASH-PROOF FEM CONN ASSY

Connector Type Male
Connector System Wire-to-Wire, Wire-to-Board
Waterproof Yes
Hybrid Connector No
Number of Holes 2
Number of Rows 1
Body Material PA
Wire Exit Angle 180°
Primary Product Color Yellow
Center Line (Pitch) 5 mm[.197 in]
Product Height 37.5 mm[1.476 in]
Product Length 23.4 mm
Product Width 22 mm[.866 in]
UL Flammability Rating No
Packing Method Bag/Box
Package Quantity 600
Mating Male Width 2.8 mm[.11 in]
Circuit Application Signal
Waterproof Rating -
Operating Voltage 24 VDC
Nominal Voltage Architecture 12 V,24 V
Connector and Terminals Terminate to -
Terminal rated current (maximum) -
