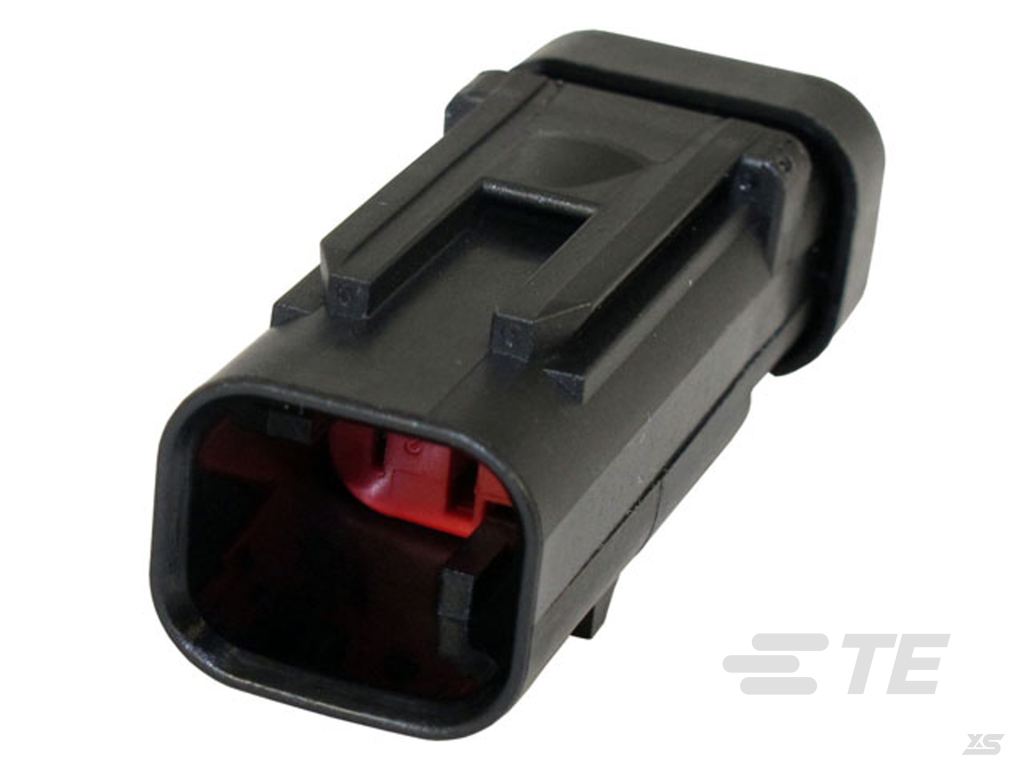

776428-1

Type:
Automotive connector sheath
Brand:
TE Connectivity
Colour:
4.5 mm[.177 in]
Product Description:
as 16, 2p cap assy, key 1

Connector Type Male
Connector System Wire to Wire
Waterproof Yes
Hybrid Connector No
Number of holes 2
Number of rows 1
Body material PBT GF
Outlet angle 180°
Main product colour red
Centreline (pitch) 4.5 mm[.177 in]
Product Height 18.93 mm[.745 in]
Product length 19.6 mm
Product Width 47.55 mm[.872 in]
UL Flame Retardant Rating UL 94HB
Package
Package Quantity 1
Width at Male Connector
Circuit Application
Waterproof Rating IP67
Operating Voltage 250 VDC
Nominal Voltage Architecture 12 V,24 V,42 V,48 V,80 V,90 V,125 V,240 V
Connectors and terminals terminated to -
Terminal Current Rating (Max)
